40 draw the free-body diagram of the wheel.

PDF Free Body Diagram Exercises - Engineering Example: Free Body Diagrams A force P (that has x, y, and z components) is applied to the handle of the hoist. The bearing A supports the thrust (force in the direction of the shaft axis), while bearing B supports only radial load (load normal to the shaft axis). Draw the FBD to determine the mass m that can be supported and the total radial force Mechanics Map - Bodies and Free Body Diagrams A free body diagram is a tool used to solve engineering mechanics problems. As the name suggests, the purpose of the diagram is to "free" the body from all other objects and surfaces around it so that it can be studied in isolation. We will also draw in any forces or moments acting on the body, including those forces and moments exerted by the ...

Solved Draw the free-body diagram of the wheel. Draw the ... Transcribed image text: Draw the free-body diagram of the wheel. Draw the vectors starting at the black dots. The location and orientation of the vectors will be graded. Vectors: F, Frictional force at point B Ng Normal force at point B o, Reaction at point o, vertical component O, Reaction at point o, horizontal component O Draw the free-body diagram of the lever.

Draw the free-body diagram of the wheel.

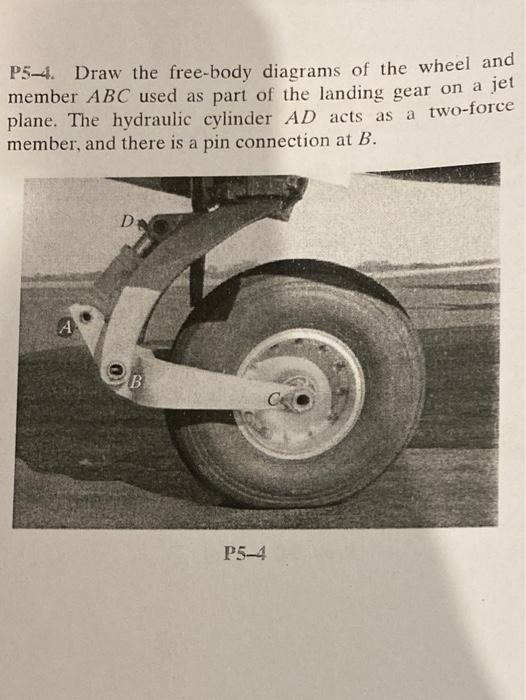

Free body diagram - 2-1 Week | Coursera And this is the free body diagram of the wheel. And as I said before, those cart and the wheel, two objects in a contact at the this contact point at the center. So those Ry and Rx are same magnitude in the opposite direction, so action reaction pair. Okay, this is it about the how you draw the free body diagram. P51 Draw the free body diagram of the uniform trash bucket ... Draw the free-body diagram of the uniform trash bucket which has a significant weight. It is pinned at A and rests against the smooth horizontal member at B. Show your result in side view. Label any necessary dimensions. *P5-4. Draw the free-body diagram of the wheel and member ABC used as part of the landing gear on a jet plane. Example 3 - Aerospace Engineering We begin by drawing the free-body diagram of the wheel. Since the roller at B is free to rotate, that means that there is no friction at the point of contact between the roller and the wheel. However, there is friction at the point of contact with the wall. If the wheel were to begin rotating in the clockwise direction, it would have to slide ...

Draw the free-body diagram of the wheel.. Wheel free body diagram - Automotive Engineering other topics ... Mar 22, 2012 · To draw the free body diagram proceed as follows. The following assumptions apply. 1. Wheel is rolling to right of page at constant velocity. 2. The wheel is on a straight level road. 3. The weight of the wheel is ignored. 4. The wheel is driven by a pure couple ie no resultant force due to driving mechanism. 5. The wheel does not slip. 6. Draw The Free Body Diagram Of The Wheel Draw The Free Body Diagram Of The Wheel. Draw the free body diagram of the wheel, Materials Link DISCLOSURE: You should think this Web-site has an affiliate partnership and/or A different material relationship into the people or corporations outlined in or connected to from this page and should receive commissions from buys you make on subsequent Websites. Answered: Draw the free body diagram of the… | bartleby Question. Draw the free body diagram of the block. Find the normal force acting on the block shown in the figure. Transcribed Image Text: 70 N 60 N 40° 40°. Expert Solution. (Solved) - Draw the free-body diagram of the wheel and ... Draw the free-body diagram of the wheel and member ABC used as part of the landing gear on a jet plane. The hydraulic cylinder AD acts as a two-force member, and there is a pin connection at B.

PDF ME 563 HOMEWORK # 1 (Solutions) Fall 2010 Newton/Euler: The next step is to draw the free body diagram of the wheel as shown below. Euler's equation can then be applied about point O to minimize the number of equations needed. Note that the moment arms for the two spring forces are computed assuming a small angle, θ. PDF Free Body Diagrams on a Loop‐the‐Loop Roller Coaster Free Body Diagrams on a Loop‐the‐Loop Roller Coaster Draw the free body diagrams for a coaster at the boom and top of a loop and write the equaons for the net force. mg F net F N F net =ma = ma c The net force in the loop must be centripetal force F net = F N Centripetal Force Sample Problem Using Free Body Diagrams ... AHEAD and click on this site...it wont hurt.Free simple easy to follow videos all organized on our website Solved Draw the free body diagram of the wheel. Draw the ... Transcribed image text: lem 8.12 ock brake is used to stop the wheel from rotating when the wheel is subjected t raw the free-body diagram of the wheel. Draw the vectors starting at the black dots. The location and orientation of th + add elementvector sum X delete element j attributes reset ? help Mo Submit My Answers Give Up Incorrect, Try Again; 5 attempts remaining

Free Body Diagram - Definition, Examples, Solved Problems ... A free-body diagram for this situation looks like this: 4. A skydiver is descending at a constant velocity. Considering the air resistance, the free body diagram for this situation would like the following: Free Body Diagram Solved Problem. Example: Draw a free body diagram of three blocks placed one over the other as shown in the figure. Solution: Solved Draw the free-body diagram of the wheel Draw the ... Draw the free-body diagram of the wheel Draw the vectors starting at the black dots. The location and orientation of the vectors will be graded. No elements selected B Press ENTERO SPACE) to see the list of the elements that can be added to the canvas. Press TAB to move to the next menu option Press CTRL*Y) to get to the elements on the canvas. Answered: C44. Draw the free-body diagram of the… | bartleby Draw the free-body diagram of the wheel and member ABC used as part of the landing gear on a jet plane. The hydraulic cylinder AD acts as a two-force member, and there is a pin connection at B. DE. C44. Draw the free-body diagram of the wheel and member ABC used as part of the landing gear on a jet plane. The hydraulic cylinder AD acts as a two ... What is a Free-Body Diagram and How to Draw it (with ... Examples of drawing free-body diagrams. To better understand how to draw free-body diagrams using the 3 steps, let's go through several examples. Example 1. A box is pushed up an incline with friction which makes an angle of 20 ° with the horizontal. Let's draw the free-body diagram of the box. The first step is to sketch what is happening:

SPH4C

Answered: The drawing shows a bicycle wheel… | bartleby The drawing shows a bicycle wheel resting against a small step whose height is h = 0.120 m. The weight and radius of the wheel are W = 25.0 N and r= 0.340 m, respectively. A horizontal force F is applied to the axle of the wheel. Neglect friction forces. (a) Draw the free-body diagram showing the forces that act on the wheel.

Newton's 2nd Law (6b of 21) The Normal Force, The Ferris Wheel

Solved Draw the free-body diagram of the wheel. Draw the ... Solved Draw the free-body diagram of the wheel. Draw the | Chegg.com. Draw the free-body diagram of the wheel. Draw the vectors starting at the black dots. The location and orientation of the vectors will be graded. add elementvector sum X delete element I attributes U reset ? help 5 N m 150 mm 50 mm 200 mm Submit My Answers Give Up Incorrect ...

Multiple forces acting on an object | StudyPug

Solved Part A: Draw the free body diagram of the wheel. Draw ... Part A: Draw the free body diagram of the wheel. Draw the vectors starting at the black dots. Part B" Draw the free body diagram of the lever. Draw the vectors starting at the black dots. Problem 8.8 Thanks =) Question: Part A: Draw the free body diagram of the wheel. Draw the vectors starting at the black dots.

How can I draw a free body diagram of a rotating wheel ...

Draw the free-body diagram of the wheel and member ABC ... Answer of Draw the free-body diagram of the wheel and member ABC used as part of the landing gear on a jet plane. The hydraulic cylinder AD acts as a two-force...

Free-body diagram of the wheel. | Download Scientific Diagram

How can I draw a free body diagram of a rotating wheel ... I figured it is first necessary to draw a free body diagram of the entire wheel and then apply the method of sections, in which I would make cuts along specific regions of the wheel and determine the forces acting on them. Below I've drawn a free body diagram of the wheel. The sum of the forces acting on the 5 holes should equal 650 kgf.

Free body diagram of an accelerating car

(PDF) Solutionmanual 5a | Fatih Demir - Academia.edu •5-1. Draw the free-body diagram of the 50-kg paper roll which has a center of mass at G and rests on the smooth blade of the paper hauler. Explain the significance of each force acting on the diagram.

The mass of the truck is 4 Mg. Its wheels are locked, and the ...

Answered: 6. Draw the free body diagram of the… | bartleby Solution for 6. Draw the free body diagram of the following figures: 60°YA B 450 30° 15 kg 15 N a. b.

18 Free body diagrams, statics | Physics Forums

Answered: A) Draw a Free Body Diagram of the ABC… | bartleby Transcribed Image Text: 50 Ib 1 in. -2 in. 3 in. 20 in.-. A) Draw a Free Body Diagram of the ABC bar. B) Draw a Free Body Diagram of the CDE piece. c) Determine the force at C. D) Determine to force exerted on the gray piece at E. B. C D 50 Ib.

Draw a complete and correct free body diagram of each of the ...

Example 3 - Aerospace Engineering We begin by drawing the free-body diagram of the wheel. Since the roller at B is free to rotate, that means that there is no friction at the point of contact between the roller and the wheel. However, there is friction at the point of contact with the wall. If the wheel were to begin rotating in the clockwise direction, it would have to slide ...

Free Body diagram of bicycle | Physics Forums

P51 Draw the free body diagram of the uniform trash bucket ... Draw the free-body diagram of the uniform trash bucket which has a significant weight. It is pinned at A and rests against the smooth horizontal member at B. Show your result in side view. Label any necessary dimensions. *P5-4. Draw the free-body diagram of the wheel and member ABC used as part of the landing gear on a jet plane.
