2008 Dodge Ram Infinity Amp Wiring Diagram Collection ... 2008 Dodge Ram Infinity Amp Wiring Diagram. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice. Infinity stereo amp bypass how to (Picture & Video ... What you're saying makes a ton of sense when replacing the front speakers and head unit, basically since the amps are part of the infinity speaker you toss that out, run the factory wire to the front speakers, then since you no longer have the amp connecting the rear door speaker wires (#5/10 #6/9) those are also then powered by the head unit.

I have a 2008 Dodge Ram 1500 with the infinity package ... neither the speaker wiring is at the EXTERNAL amplifier NOT at the radio on infinity systems there is an external amp the radio has no authority over speakers or any wiring to them except the most basic outputs TO the amp. ... Need a wiring diagram for a 2008 Dodge Ram 3500 megacab Laramie pickup with factory navigation radio ...

Dodge ram infinity amp wiring diagram

On a 05 dodge Durango with the infinity systems. What ... SOURCE: how do i hook up an after market stereo in a 1998 dodge durango slt with an infinity sound system w/amp get an adaptor kit for the stereo wiring. it will plug directly into the factory harness and vertually eliminate cross-wiring. 2008 dodge: wire colors for the speakers..with amp system… What are the wire colors for the speakers in a 2008 dodge ram with the infinity 7 speaker with amp system - Answered by a verified Dodge Mechanic. ... Need a wiring diagram for a 2008 Dodge Ram 3500 megacab Laramie pickup with factory navigation radio ... '05 Infinity Stereo Wiring Diagram | Dodge RamCharger Central I am trying to install a aftermarket cd player/sat radio in my '05 Dodge truck which has the Infinity sound system from the factory. I have been told that the infinity system has an external amp that power all of the factory speakers, but we are having trouble identifying some of the wires in the factory wiring harness.

Dodge ram infinity amp wiring diagram. 2004 Dodge Ram 1500 Stereo Wiring Guide - MODIFIEDLIFE Whether you're an expert Dodge Ram 1500 mobile electronics installer, Dodge Ram 1500 fanatic, or a novice Dodge Ram 1500 enthusiast, a Dodge Ram 1500 car stereo wiring diagram is a must. One of the most time consuming tasks with installing a car radio is identifying the correct wires. If you want to know how to change your radio in your 2004 ... 41 2001 dodge dakota radio wiring diagram - Wiring Diagram ... 2009 Dodge Ram Stereo Wiring Diagram - Wiring Sample Radio wiring diagram stereo on dodge stereo wiring dodge dakota wiring diagrams pin outs locations brianesser com and lively 97 radio diagram within dodge stereo wiring 1997 dodge ram 1500 radio 2005 dodge ram 2500 wiring diagram thanks for visiting our site this is images about 2005 dodge. 2009 - 2018 2019 - 2021 Classic. 2009 Dodge Ram ... Stereo wiring diagram for a 2002 dodge ram 1500 with - Fixya 1998 Dodge Ram 1500 Truck Car Stereo Radio Wiring Diagram Car Radio Constant 12v+ Wire: Red Car Radio Switched 12v+ Wire: Red/White Car Radio Ground Wire: Chassis Car Radio Illumination Wire: N/A Car Stereo Dimmer Wire: Orange/White Car Stereo Antenna Trigger: Yellow Car Stereo Amp Trigger Wire: N/A Car Stereo Amplifier Location: Behind the ... 2004 Dodge Ram 2500 Stereo Wiring - the12volt.com 2004-2005 Dodge Ram. Power / Amplifier. Bypass Harness. These harnesses are designed to be used with. the 2004 Dodge Ram SRT-10 or the 2004 Dodge. Ram with the amplified Infinity sound system and. the handsfree capable system. To determine if. you have the handsfree capable system, look on. the rear view mirror for a telephone symbol. If

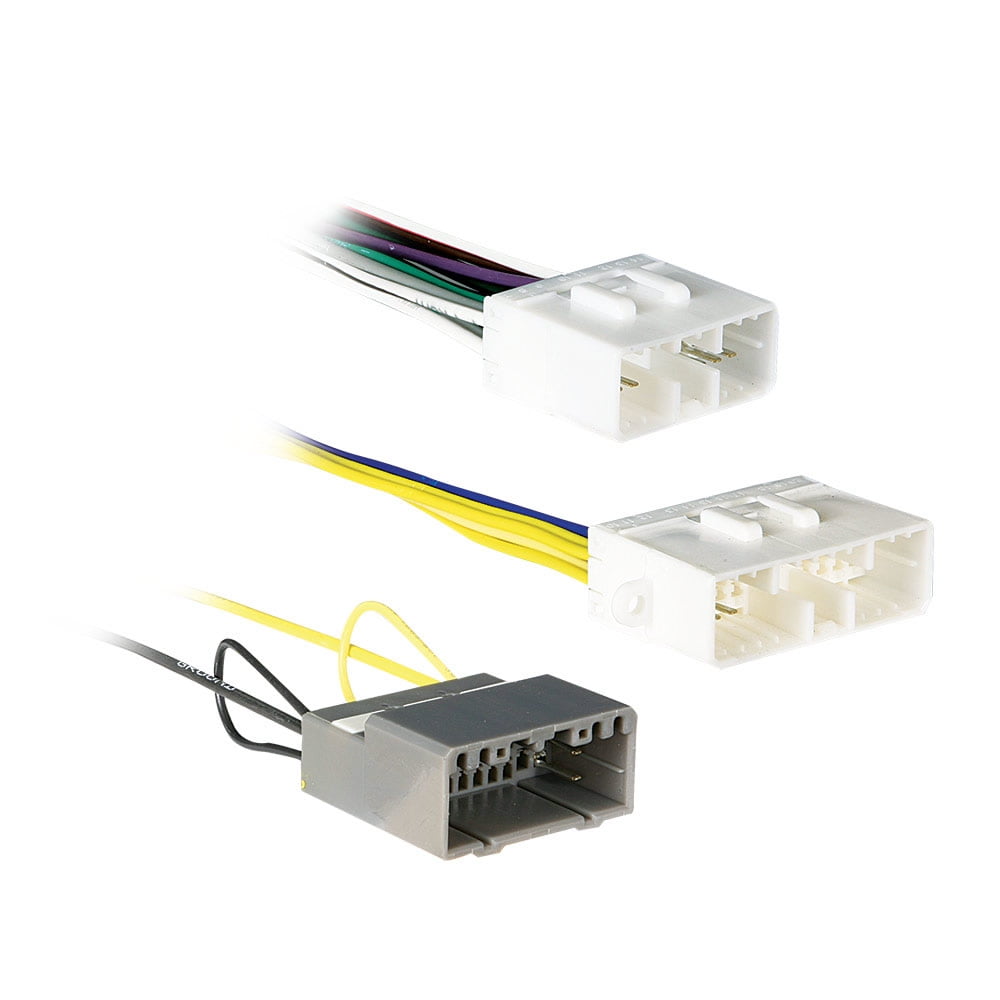

2006 Dodge Ram Audio Wiring Diagram - the12volt.com Looking for an audio wiring diagram for a 2006 Dodge Ram 1500 MegaCab. Has REC radio with infinity speaker system. 2005 Dodge Ram 2500 Audio Wiring Diagram - MODIFIEDLIFE Whether you're an expert Dodge Ram 2500 mobile electronics installer, Dodge Ram 2500 fanatic, or a novice Dodge Ram 2500 enthusiast, a Dodge Ram 2500 car stereo wiring diagram is a must. One of the most time consuming tasks with installing a car radio is identifying the correct wires. If you want to know how to change your radio in your 2005 ... Metra 70-6510 Amp Bypass Harness - Crutchfield In addition to the amplifier bypass harness, a power harness is also included for your aftermarket head unit. 2004 Dodge Ram SRT-10 with hands-free and Infinity sound system (must have a telephone symbol on the mirror) 2004 Dodge Ram (non SRT-10) with Infinity sound system; 2005 ALL Dodge Rams with Infinity sound system; Wire Code Chart: 1997 Dodge Ram 1500 Infinity ... - Wiring Diagram Sample 1997 Dodge Ram 1500 Infinity Stereo Wiring. To properly read a wiring diagram, one provides to find out how the components within the system operate. For example , in case a module is powered up and it sends out a new signal of half the voltage in addition to the technician does not know this, he would think he offers a challenge, as he or she ...

Dodge Ram Infinity Amp Wiring Diagram - Wirings Diagram As stated previous, the lines at a Dodge Ram Infinity Amp Wiring Diagram represents wires. Sometimes, the wires will cross. However, it doesn't mean link between the wires. Injunction of 2 wires is usually indicated by black dot on the intersection of 2 lines. How to replace Infinity Audio System | DODGE RAM FORUM ... The Y harness can now be tucked out of the way. Using the adaptor you can now connect your new radio to the cab harness. Be sure to disconnect the fuse for the infinity amp to fully disable it. Full removal of the Infinity amp is possible, but a massive pain. It is located behind and above the glove box. 2005 Dodge Ram Infinity Amp Wiring Diagram New | Wiring ... 50 Inspirational 1997 Dodge Ram 1500 Radio Wiring Diagram- Car radio installation side dishes comprise of harness adapters leads, fascia adapters, stalk/steering wheel manage adapters (also known as intellectual leads) and aerial adapters. 1999 Ram Radio Wiring Dat Wiring DiagramsWiring Diagram 1997 Dodge Intrepid 2000 dodge ram 1500 radioOne or more of the above adaptors may be needed past ... 04 QC/Infinity. Aftermarket Stereo install problem ... This diagram is the standard wiring to all HU models used in the Dodge RAM, that why yo can buy any other Chrysler HU and fit your truck, this diagram was an extract from the Dodge RAM 04 Service Manual. if you need any othe diagram I can send it to you. I didn't send you the service manual because is 70 megs in size.

2003 Dodge RAM 3500 Infinity AMP Connections

2005 Ram 1500 SLT factory amp bypass wiring ... - YouTube In this video I am replace in factory 7 speaker Infinity stereo with an aftermarket head unit and bypassing the factory amp with a Metra wiring harness (see ...

Metra Chrysler Dodge Jeep Amp Bypass, 70-6514

Amazon.com: Metra 70-6512 Dodge Ram 2002-04 Amp Bypass ... I've attached the wiring diagram I found that was at least correct for my 2002 Dodge Ram 1500 SLT Quad Cab. Of the two harnesses coming into the infinity amp, the smaller connector is the inputs and the larger one has the constant power for the amp and the wires going out to the speakers.

Bypassing Infinity Amps and Stereo Upgrade | Dodge Cummins ...

PDF Dodge Ram Infinity Amp - preps.ocala.com 34 Dodge Ram Infinity Amp Wiring Diagram - Wiring Diagram List Page 4/6. File Type PDF Dodge Ram Infinity Amp I am entering the stereo world for the first time and have a few questions. i have a 2004 dodge ram quad cab. It has the 7 speaker infinity stock system and has a factory amp.

Radio Replacement

2007 Dodge Ram 3500 Inifinity amp workaround and broken ... This started with a rear door speaker that wasn't working, it morphed into wiring around the infinity Amplifier that was factory installed. I was attempting...

Metra 70-6510 (met-706510) Amp Bypass Wiring Harness for 2004-

Dodge Ram Infinity Amp Wiring Diagram - easywiring Dodge ram infinity amp wiring diagram 2002 dodge ram 1500 infinity amp wiring diagram 2005 dodge ram 1500 infinity amp wiring diagram 2005 dodge ram infinity amp wiring diagram every electric arrangement is composed of various unique components. Each component should be set and linked to other parts in specific manner. New 2004 Dodge Ram …

How to Bypass Factory Amp and Radio Install Works 100% - YouTube

'05 Infinity Stereo Wiring Diagram | Dodge RamCharger Central I am trying to install a aftermarket cd player/sat radio in my '05 Dodge truck which has the Infinity sound system from the factory. I have been told that the infinity system has an external amp that power all of the factory speakers, but we are having trouble identifying some of the wires in the factory wiring harness.

02 03 04 05 道奇 RAM Infinity JBL 阿尔派车载立体声收音机高级音响适配器 | eBay

2008 dodge: wire colors for the speakers..with amp system… What are the wire colors for the speakers in a 2008 dodge ram with the infinity 7 speaker with amp system - Answered by a verified Dodge Mechanic. ... Need a wiring diagram for a 2008 Dodge Ram 3500 megacab Laramie pickup with factory navigation radio ...
