If you already have the MSD 6AL connected then here is the Multi-Step Retard PN 8972 Wiring. Black - To ground Red - To Switched 12 volts (Ignition on/off) Yellow - To white wire on MSD 6AL Violet - To Starter Solenoid Switched 12 volt wire White - To Points or amplifier trigger wire Violet/Green - To Distributor Mag (+) and Mag (-) Msd 3 Step Wiring A wiring diagram usually gives recommendation more or less the relative perspective and arrangement of devices and terminals on the devices, to help in building or servicing the device. This is unlike a schematic diagram, where the pact of the components' interconnections on the diagram usually does not tie in to the ...

A wiring diagram is a type of schematic which uses abstract photographic icons to show all the interconnections of elements in a system. Msd 6al 2 ignition control pn 6421. Msd 6al with 2 step wiring diagram use wiring diagram msd 3 step wiring diagram schema diagram database. Symbols that represent the components in the circuit as well as ...

Msd 3 step wiring diagram

Msd 2 Step Wiring Diagram - msd 2 step mustang wiring diagram, msd 2 step wiring diagram, msd 6al 2 step wiring diagram, Every electric structure consists of various diverse parts. Each part ought to be set and linked to other parts in particular manner. Otherwise, the structure will not function as it should be. I have it conected to my 2 step so the transbrake and 2 step are activated at the same time. The solenoid will engage and release when the rpms are low but if I push the transbrake button and put the peddle to the floor the car comes up on the 2 step but when I release the button the car doesn't move. Could it be low amperage or just a wiring ... As an example, we'll use a drag car with a Three Step Module Selector plugged into the rpm socket of a 7AL-2 Ignition. The different rpm modules are activated when 12 volts are applied to a corresponding wire. By connecting one wire to the line-lock circuit, one module will be activated during the burnout. This helps keep tire temperatures consistent. When the line-lock button is released ...

Msd 3 step wiring diagram. MSD Three-Step Module Selectors. Multi-Step Module Selector, 3-Step, Plastic, Black, Each. See More Specifications. MSD Ignition 8737 - MSD Three-Step Module Selectors. MSD-8737. ( 10 ) Part Number: MSD-8737. Estimated Ship Date: Monday 12/13/2021. Add To Cart. MSD 2 Step Clutch Wiring Diagram. Jump to Latest Follow 1 - 15 of 15 Posts. D. DougA · Premium Member. Joined Jul 14, 2002 · 4,538 Posts . Discussion Starter · #1 · Feb 23, 2010. Only show this user ... MSD Module Selectors Two Step, PN 8739 Three Step, PN 8737 Parts Included: 1 - Module Selector 4 - Mounting Screws Note: Do NOT use solid core spark plug wires with any MSD component. 1 - Parts Bag, Wiring Terminals The MSD Module Selectors provide the ability to switch between two or three different rpm or degree modules. Msd 3 Step Wiring Diagram Wiring 2 Msd Box Help Wiring 2 Step On Msd 6010 Ls1tech Camaro And Firebird Msd 8739 Two Step Module Selector Wotbox2 Stepfeature2 Www2 Trans Brake 2 Step Smooth Stage Wiring Performancetrucks Net Forums How To Install An Msd Launch Master 2 Step Rev Limiter On A 1999 Wrg 2228 Msd 6al 2 Wiring Diagram ...

3. After cutting the loop(s), turn the wire ends away from each other so they cannot come into contact. Install the cover and screw. WIRING GENERAL WIRING INFORMATION Wire Length: All of the wires of the MSD Ignition may be shortened as long as quality connectors are used or soldered in place. Module 2: This is the default module. It is active when no voltage is present. on the other wires. Module 1: Active when 12 volts are applied to the Red Wire. Module 3: Active when 12 volts are applied to the Blue Wire. (3-Step Only) Note: If 12 volts are applied to the Red and Blue wires at the same time, Module 3 will be active. Top. Msd 3 Step Wiring Diagram from i2.wp.com To properly read a wiring diagram, one has to find out how typically the components in the program operate. For example , if a module will be powered up also it sends out a new signal of 50 percent the voltage plus the technician will not know this, he'd think he offers a problem, as this individual ... Msd Two Step Wiring Diagram. By | February 24, 2016. 0 Comment. 2 step wiring question help yellow bullet forums msd 8737 rpm module selector installation instructions jegs mounting 8732 rev control for digital 6al user manual page 4 ignition 8739 pdf manualslib two pages also three will a work with transmission ford mustang stangnet and ...

Msd 3 Step Wiring Diagram- wiring diagram is a simplified standard pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the capacity and signal contacts amid the devices. A wiring diagram usually gives opinion very nearly the relative slope and understanding of devices and terminals upon the devices, to back in building or ... The MSD 6014 LS Ignition controller works with 24x/1x, 58x/4x and crank/cam configurations. It auto detects the correct configuration based on the reluctor wheel pattern, so there is no need to select one. It provides six pre-programmed (non-editable) timing tables for stock engines, three customizable 3-D tables and one customizable timing plot. Note: The MSD 7AL-3 will retard the ignition timing approximately 4° compared to other MSD Ignitions. Read online or download PDF • Page 9 / 12 • MSD 7AL-3 Ignition Control Installation User Manual • MSD For the car. Choose the appropriate wiring diagram from the reverse side and wire as shown. Page 1 MSD Module Selectors Two Step, PN 8739 Three Step, PN 8737 Parts Included: 1 - Parts Bag, Wiring Terminals 1 - Module Selector 4 - Mounting Screws Note: Do NOT use solid core spark plug wires with any MSD component.; Page 2 INSTALLATION INSTRUCTIONS REV LIMITER STEP MODULE SELECTOR PN 8739 BLACK AUTOTRONIC CONTROLS CORPORATION 1490 HENRY BRENNAN DR, EL PASO, TX 79936 MODULE 2 MODULE 1 ...

2 Step And Clutch Switch Wire Ls1tech Camaro And Firebird Forum Discussion

4 INSTALLATION INSTRUCTIONS AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344 WIRING GENERAL WIRING INFORMATION Wire Length: All of the wires of the MSD Ignition may be shortened as long as quality connectors are used or soldered in place.

Msd 6530 Wiring Diagram Msd Heavy Red Diagram

wire the 2-Step rev limit and the LED will turn off. 3-STEP If you prefer to have three different rev limits, a second PN 8732 could be used to provide a third rev limit, such as for use during the burnout. MSD • WWW.MSDPERFORMANCE.COM • (915) 855-7123 • FAX (915) 857-3344 ONLINE PRODUCT REGISTRATION: Register your MSD product online.

Msd Pn 8970 Wiring Diagram. That is why we have assembled the MSD Ignition Wiring Diagrams and Tech Notes Book. 3-Stage Retard, PN , and Multi-Step Retard, PN Red. Page 1. 3-Stage Retard PN IMPORTANT: Read the instructions before attempting the installation. Parts Included: 1 - 3-Stage Retard Control 4 - Mounting.

Msd Start Step Retard Box Need Help Moparts Forums

Note: The MSD 7AL-3 will retard the ignition timing approximately 4° compared to other MSD Ignitions. After installation, the timing should always be checked and adjusted at idle and total timing. RAS ON/OFF Figure 5 Primary Wiring to a Mallory Unilite Distributor. NOTE: ALL 3-WIRE MALLORY DISTRIBUTORS CONNECT THIS WAY.

Pin On Ceiling Fan Wiring Diagram

Msd Wiring Diagrams - Brianesser - Msd 2 Step Wiring Diagram. Wiring diagram also provides beneficial ideas for tasks which may demand some extra tools. This guide even contains ideas for extra supplies that you could want in order to finish your tasks. It'll be capable to offer you with additional equipment like conductive tape ...

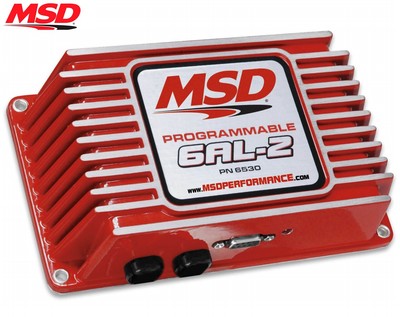

Msd 6530 6al 2 Programmable Ignition Box Built In 2 Step Sbc Bbc Sbf Chevy Ford 85132065301 Ebay
