The crest of a wave is the point on the medium that exhibits the maximum amount of positive or upward displacement from the rest position. Points C and J on the diagram represent the troughs of this wave. The trough of a wave is the point on the medium that exhibits the maximum amount of negative or downward displacement from the rest position. There are 2 complete waves shown in the diagram. The wavelength is the length of one wave, 40 cm. The amplitude is the height of the wave, 10 cm.

In the above diagram the white line represents the position of the medium when no wave is present. This medium could be imagined as a rope fixed at one end a few feet above the ground and held by you at the other end. The yellow line represents the position of the medium as a wave travels through it. We simply say that the yellow line is the wave. If we consider the rope mentioned before, this ...

Wave diagram blank

A wave that moves in the direction perpendicular to its propagation. A sound wave is an example of a longitudinal wave. Water waves are an example of a transverse wave. It is made of refractions and compressions. It is made of troughs and crests. This wave can be produced in any medium such as gas, liquid or solid. Wave: a traveling disturbance that carries energy from one place to another a wave travels through a substance called the medium Example: Water is the medium for ocean waves. Air is the medium for sound waves. Jan 317:46 PM Wavelength: measured from crest to crest or In the diagram the rope moves up and down, producing peaks and troughs. Energy is transferred from left to right. However, none of the particles are transported along a transverse wave.

Wave diagram blank. Wave Diagram Labeled. Saturday, April 15th 2017. | Free Labels. Wide collections of all kinds of labels pictures online. Make your work easier by using a label. Happy Labeling! Labels are a means of identifying a product or container through a piece of fabric, paper, metal or plastic film onto which information about them is printed. For wave diagrams, the wave direction and wave fronts are normally drawn. The distance between two wave fronts is the wavelength of the wave \(\lambda\) Waves, such as water waves, obey the law of ... 1- Use the words below the Sine Wave Diagram to fill in the blanks provided. 1 Crest 3 Trough 2 Wavelength 4 Midline 5 Amplitude Midline - Crest - Amplitude - Wavelength - Trough 2- Use the diagram below to find the measurements at bottom of page: Amplitude = ____1_____ Inch Wavelength = ____1.25_____ Inch Number ... The periodic wave in the diagram shown has a frequency of 40 hertz. What is the speed of the wave? A. 13m/s B. 27m/s C. 60m/s D. 120m/s 37. As a longitudinal wave passes through a medium, the particles of the medium move A. in circles B. in ellipses C. parallel to the direction of wave travel

Longitudinal waves because they move back and forth in the same direction as the wave. 10. Why can't you calculate the frequency of the wave in the diagram?2 pages Labels take varied forms depending upon their application. For example, in textile industry they are woven or attached to the garment and made of fabric, plastic, PVC or leather.Whatever form they assume they perform an important function in every sphere of use. tags: label the parts of a wave, label the parts of a wave in this drawing, label ... The names of the types of wave, and the order that they are arranged in.! The uses of each type of wave.! How each type of wave is made.! The dangers of each type of wave. CONTENTS. You need to remember: the names of the waves, which ones have high or low frequencies Evoke the excitement of exploration with this Edraw leaf cross section science diagram template. Check for more insights of every cell unit of a leaf. More scientific diagram materials are waiting for your in the free download version.

Question 19. SURVEY. 900 seconds. Q. Consider the standing wave pattern shown below. A wave generated at the left end of the medium undergoes reflection at the fixed end on the right side of the medium. The number of antinodes in the diagram is _____. time period - the time taken for a full cycle of the wave, usually measured from peak to peak, or trough to trough frequency - the number of waves passing a point each second Diagram of a wave The following questions refer to the diagram to the right: Is this wave transverse or longitudinal? LONGITUDINAL. Letter H represents a ___COMPRESSIONS____ and letter I represents a ___RAREFACTIONS____. Letter G represents a ___WAVELENGTH___. 12. A kid on a playground swing makes 6 complete to-and-fro swings each 30 seconds. Results 1 - 24 of 1728 — Includes the following:➸ Venn diagram blank template➸ Features of sound and light waves information boxes➸ Venn diagram solutionHow.

Waves Objective I Will Understand The Difference Between Mechanical Waves And Electromagnetic Waves Ppt Download

Electromagnetic Spectrum Diagram. The electromagnetic spectrum is comprised of all frequencies of electromagnetic radiation that propagate energy and travel through space in the form of waves. Longer wavelengths with lower frequencies make up the radio spectrum. Shorter wavelengths with higher frequencies make up the optical spectrum.

Science 8 Sol Jeopardy Speedmatch Review Game

(e) Waves_a__and___ have a low amplitude and a steady frequency. 7. The following questions refer to the diagram to the right: (a) Is this wave transverse ...2 pages

Ian Hickson S Laser Experiment

The wavelength is another property of a wave that is portrayed in the diagram above. The wavelength of a wave is simply the length of one complete wave cycle. If you were to trace your finger across the wave in the diagram above, you would notice that your finger repeats its path. A wave is a repeating pattern. It repeats itself in a periodic and regular fashion over both time and space. And ...

Solved The Diagram Represents A Snapshot Of A Standing Chegg Com

Objective: Identify the parts of a wave and draw your own diagrams of waves. Background: Many types of waves exist, including electromagnetic waves and mechanical waves. Waves move in different ways and have different properties. Part 1 In the diagram below, identify the parts of a wave by using the provided definitions.

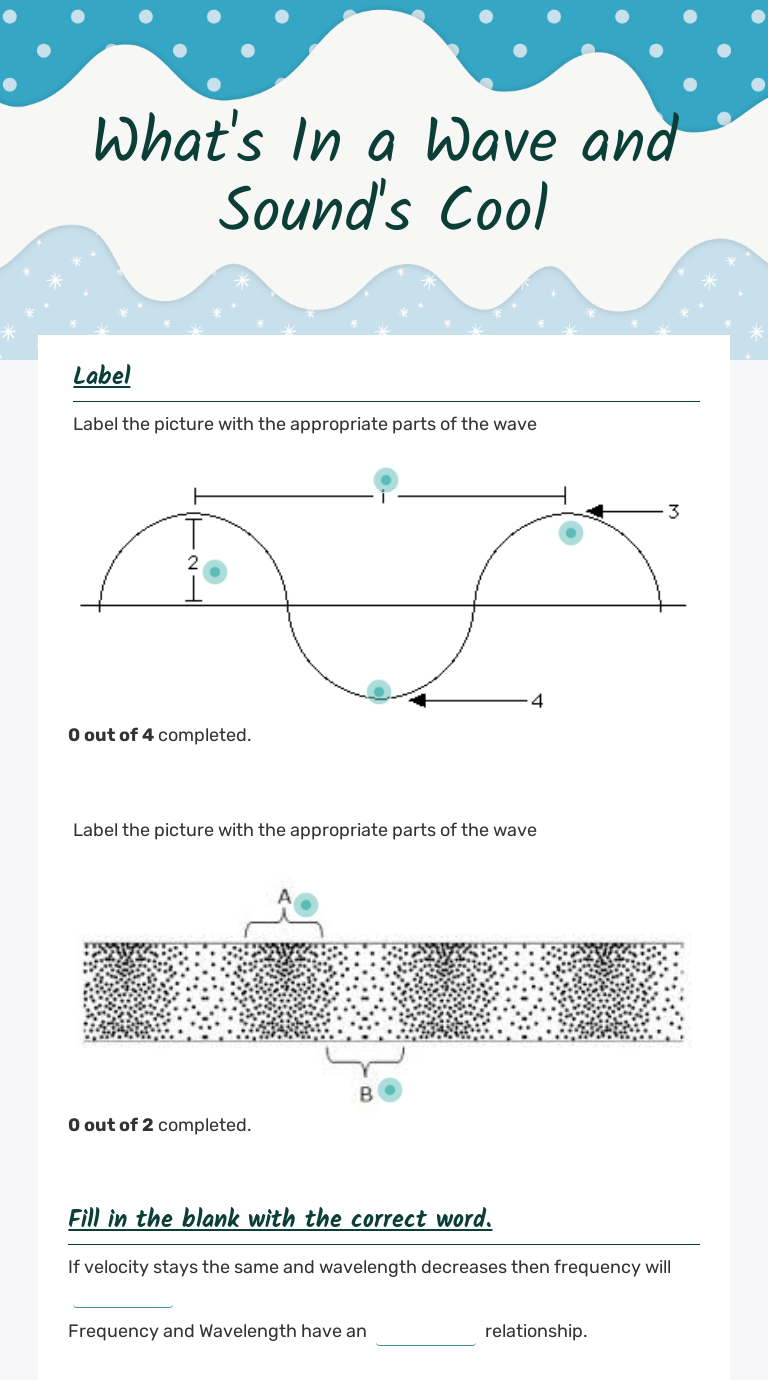

What S In A Wave And Sound S Cool Interactive Worksheet By Joleen Michalowicz Wizer Me

The wave is seen as the motion of the compressed region (ie, it is a pressure wave), which moves from left to right. The second animation at right shows the difference between the oscillatory motion of individual particles and the propagation of the wave through the medium. The animation also identifies the regions of compression and rarefaction.

Waves Components Types Parameters Study Com

About this Worksheet. This is a free printable worksheet in PDF format and holds a printable version of the quiz The Wave Diagram.By printing out this quiz and taking it with pen and paper creates for a good variation to only playing it online.

Transverse Wave

Wave Diagram to Print. Free and printable wave diagrams have been collected for you to print with high definition. Learning about the details of wave will require you to examine it through a diagram. A wave is a regular vibration that carries energy. Ripples on the surface of a pond, sound in air, ultrasound, visible light, X rays and infrared ...

What S In A Wave And Sound S Cool Interactive Worksheet By Amanda Rusiniak Wizer Me

WaveDrom draws your Timing Diagram or Waveform from simple textual description. It comes with description language, rendering engine and the editor. WaveDrom editor works in the browser or can be installed on your system. Rendering engine can be embeded into any webpage.

Square Wave Stripping Voltammograms After Blank Subtraction For Download Scientific Diagram

Snake wave line PowerPoint Diagram Template, This diagram is a snake wave line zigzagging a semi doughnut. This is a flow presentation concept consisting of flexible lines and six colorful circle parts. It is also an editable graphic with text and icon placeholders.

Transverse Longitudinal Waves Starter Teaching Resources

The wavelength of the wave in the diagram below is given by letter wave in the diagram below is ... and filling in the blanks in the following diagrams.19 pages

Physics Tutorial The Anatomy Of A Wave

In a light wave, amplitude determines the _____ of the light, while wavelength and frequency determine the _____ of the light. 1st blank: Brightness 2nd blank: Color

Physics For Kids Properties Of Waves

Anatomy of a Wave Worksheet Objective: Identify the parts of a wave and draw your own diagrams of waves. Background: Many types of waves exist, including electromagnetic waves and mechanical waves. Waves move in different ways and have different properties. Part 1 In the diagram below, identify the parts of a wave by using the provided definitions.

Topic 2 Wave Properties 7th Grade Label The Waves Diagram Quizlet

Waves Review Answers 1

Amplitude ( Top, Wave Home). The term amplitude can have slightly different meanings depending upon the context of the situation.. Its most general definition is that the amplitude is the maximum positive displacement from the undisturbed position of the medium to the top of a crest. This is shown in the following diagram:

Lesson Worksheet Properties Of Waves Nagwa

10.1 Wave Basics. Waves generally begin as a disturbance of some kind, and the energy of that disturbance gets propagated in the form of waves. We are most familiar with the kind of waves that break on shore, or rock a boat at sea, but there are many other types of waves that are important to oceanography: Internal waves form at the boundaries of.

Physics For Kids Sound Wave Characteristics

This type of wave is reflected by particles in the ionosphere. www.HomeEducationResources.com Layers of the Atmosphere Diagram 1. Give each student a copy of the following two pages. 2. Lay out 9" wide construction paper of various colors, plus rulers, scissors, and pencils. 3. ...

Wave 2: Wave 3: Frequency Connection. There are three members of a family. The dad has a deep, low voice. The mom has a medium-high voice, and.

Solved The Diagram Represents A Snapshot Of A Standing Chegg Com

Venn diagrams in multiple printable versions. Both vertical and horizontal, with circles for two or three concepts. Terrific tool for organizing compare and contrast information. Teachers just click and print. 100% free. No registration or log-in required.

10 3 Characteristics Of A Sound Wave Sound Siyavula

Waves have several properties which are represented in the diagrams below. In a Transverse wave the Crest and Troughs are the locations of maximum displacement up or down. The Amplitude is the measurement of maximum displacement. The Wavelength is the distance of one complete wave cycle. For example; the distance from crest to crest or trough ...

S8P4f. Diagram the parts of the wave and explain how the parts are affected by changes in amplitude and pitch 2. How do changes in one part of a wave affect other parts of a wave? TEXTBOOK PAGES 466-470 *Essential Vocabulary listed in the Standards **Supplemental Vocabulary listed in the state frameworks and/or other state document Essential* Wave

Ocean Wave Diagram Images Stock Photos Vectors Shutterstock

Work of Sea Waves (With Diagram) | Geography. The work of sea water is performed by several marine agents like sea waves, oceanic currents, tidal waves and tsunamis but the sea waves are most powerful and effective erosive agent of coastal areas. Sea waves are defined as undulations of sea water characterized by well-developed crests and ...

Do Now Grab A Notecard And Select Two Topics From This Unit That You Are Not Confident In On One Side Write Everything You Know About One Topic On Ppt Download

• A wave is a disturbance that propagates in a medium • transverse waves on a string • longitudinal sound waves in air • an electromagnetic wave is an electric and magnetic disturbance that propagates through space (even vacuum) at the speed of light 299,792,458 m/s or 186,000 miles/s. No medium is required!

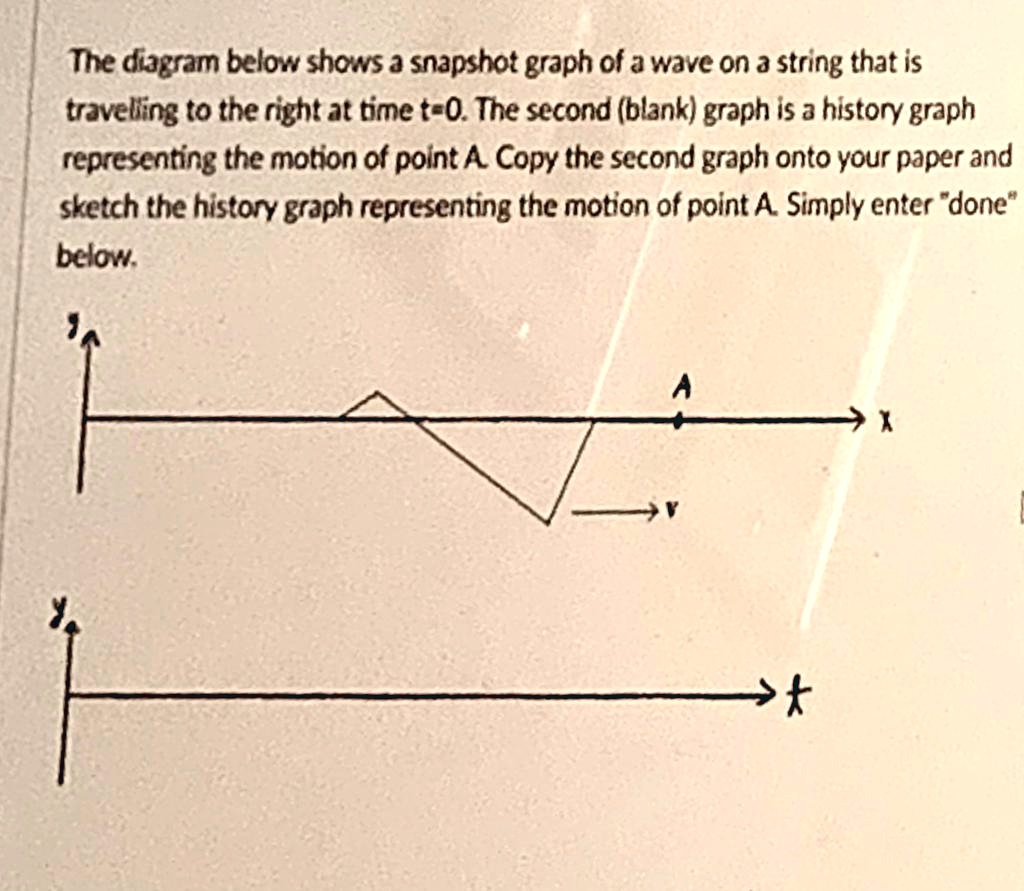

Solved The Dizgram Below Shaws J Snapshot Graph Of A Wave On A String That Is Travelling To The Right At Time T 0 The Second Blank Graph Is A History Graph Representing The
